Hardware of GEOPLAN
To support various RTLS communication environments,
it integrates wired/wireless communication technologies such as Thread,
UWB and Ethernet to establish a flexible and scalable solution.
Locators provide position and data services that enable seamless
installation in any space and allow two-way communication with all UWB devices.
UWB 정밀측위 제어 송수신 · 3GHz~8GHz 다양한 UWB Channel(Qorvo, NXP) 선택지원
– Supports selection of UWB positioning functions such as AoA, TDoA, TWR, etc.
– Wi-Fi Backhaul I/F지원으로 무선 구축지원
– G-Pixel Display 제어 송수신
– Zigbee/BLE, PoE
Support for RTLS Edge Engine Edge Gateway for Cloud SaaS
– 기타, BLE 3rd Part Device 통신 지원
Our locator enables seamless installation in any space and facilitates bidirectional communication with all UWB devices, providing location and data services.
UWB 정밀측위 제어 송수신 · 5GHz~8GHz UWB Channel(NXP) 지원
– Supports selection of UWB positioning functions such as AoA, TDoA, TWR, etc.
– Wi-Fi Backhaul I/F지원으로 무선 구축지원
– Zigbee/BLE, PoE
Support for RTLS Edge Engine Edge Gateway for Cloud SaaS
– 기타, BLE 3rd Part Device 통신 지원
To enhance the accessibility of applying UWB RTLS technology to existing network infrastructures, we designed and developed a plug-and-play solution. Through a partnership with the global network equipment company CISCO, we have integrated and validated the technology with CISCO APs (Access Points). Following thorough technical verification, the solution has been released in beta version.
The Uplugnplay Locator seamlessly integrates with existing network infrastructure equipment, minimizing the need for additional wiring or infrastructure setup costs. Its plug-and-play design allows for easy installation in any space, enabling smooth deployment. Moreover, it provides location and data services, facilitating bidirectional communication with all UWB devices.
Supported Options
– UWB 8GHz CH9
– Bluetooth BLE 5.0, 2.4GHz
– Supply Voltage Typ 3.3V(2.7~3.6)
– Size : 55 x 25 x 4.1 mm
– Weight : 1.8g
RTLS tags are used for asset tracking, vehicle tracking,
material or process flow analysis, and employee position tracking.
Geoplan tags provide high accuracy with long battery life, and they can track hundreds of tags
within a region simultaneously. In addition, each project has different tag requirements,
so Geoplan developed and provides standardized tags.
that can be carried by an individual which is used for real-time
position identification and tracking.
Call for assistance, including motion detectors for personal safety,
using the PUSH button and buzzers for motion verification in the event of an emergency.
Various UWB Channels
– ID220(NXP)
Supported Options
– UWB 3.5GHz ~ 8GHz
– Bluetooth BLE 5.2, 2.4GHz
– Tilt Sensor For motion detect
– Power Supply Coin battery 3.0V 620m Ah
The tag is equipped with not only precision location tracking capabilities but also motion detection sensors to detect movement. Additionally, it includes features such as event or emergency push buttons and LEDs for motion confirmation.
Smart Factory: Tags are attached to tools or assets.
Industry Safe : Attachment to worker helmets, safety vests, etc. Also attachable to worker safety helmets and terminals.
Healthcare : Attachment to medical equipment assets and facilities (wheelchairs, beds, etc.) within hospitals, and can also be used as patient care bands.
Supported Options
– UWB 8GHz CH9
– Bluetooth BLE 5.0, 2.4GHz
– Tilt Sensor for Motion Detect
– Power Supply Coin battery CR2450 1 cell
– Size : 41 x 41 x 13 mm

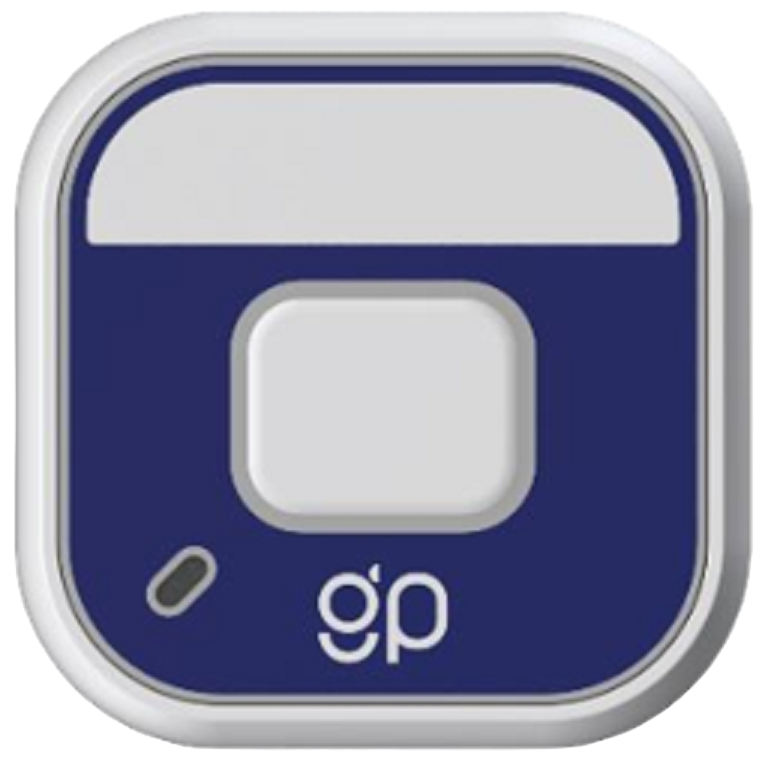

the universal tag incorporates a solid exterior casing and long-life battery,
allowing real-time tracking of all objects, including indoor assets, vehicles and people.
Features such as motion detectors, PUSH buttons for event occurrence,
and LEDs for motion confirmation are included to enhance performance.
Supported Options
– UWB 3.5GHz ~ 8GHz
– Bluetooth BLE 5.0, 2.4GHz
– LF 125KHz (Option)
– Tilt Sensor For motion detect Operation
– Power Supply
– DT720/TR740 D size battery, TR741 Wireless Charging, DT730 DC24V
It is used in place of paper price tags in stores and provides position signals as well as various information such as price, inventory and product information. Tags that only provide simple position data meet an information display function, allowing the visualization and displaying of various information, including items, prices, quantity, inventory status, work instructions and advertisements in real-time.
다양한 정보를 표시 뿐 아니라 위치 신호를 함께 제공합니다.
Distribution : Real-time inventory status, quantity, product information visualization, smart picking, product navigation, automatic price conversion
Logistics: First-in-first-out management, visualization and control of logistics movement
Supported Options
– UWB 3.5GHz ~ 8GHz
– Bluetooth BLE 5.0, 2.4GHz
– 5.8 inch : CR2477 3pcs, 3.7 inch : CR2477 2pcs
– Resolution – 5.8inch 138 DPI, 3.7inch 130DPI, 3 Color(black/white/red)
It features an ultra-wideband (UWB) transceiver, QN9090BLE MCU and SE051 IoT security element.
All circuits, power management and clock circuits are integrated into one module, and support five RF ports (4 RX ports, 1 TRX port).
The module complies with IEEE 802.15.4 HRP and Bluetooth LE 5.0.
Features supported by Geoplan modules
– Creates a wide variety of product forms
– Offers convenient HW production for wireless performance
– Provides protocols for heterogeneous HW interfaces
– Provides FW for implementing a variety of services
– Enables application development to meet international standards
